xFUME® ABIROB® AF500 Robotic Fume Extraction Torch
The AF500 is most efficient when welding in tighter spaces and boasts fume capture at the source. Our air-cooled MIG torch integrates with the most widely deployed cobot models. Combine with xFUME® extractors to provide both efficient extraction and a cost-effective solution.
xFUME® ABIROB® AF500 Features and Benefits:
- Reach tighter spaces with a slim nozzle profile
- Capture fumes at the source with xFUME® capture technology
- Packages available for widely used cobot models UR5e, UR10e, UR16e, and Fanuc CRX-10
- 180-Degree and 22-degree configurations with quick change swanneck reduce downtime and maintenance requirements
xFUME® ABIROB® AF500 Features at a Glance:
Slim Profile Neck Design
xFUME® Extraction Technology

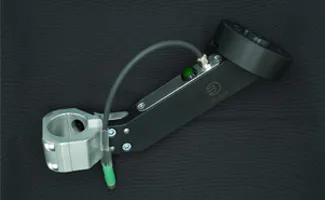

EasyTeach or FreeDrive Torch Mount
Are you welding in a tight space? The AF500 22° neck angle and slim profile nozzle maximizes maneuverability and reach.
Save space on bulky systems with xFUME® at source capture technology. Eliminate fumes and the requirement of cumbersome hoods.
Configure weld points, and begin integrating with cobot welding systems utilizing our EasyTeach technology or free drive.
|
Front End | Nozzles and Contact Tips | Liners | Torch Mounts |
|
| Front End | xFUME® ABIROB® AF500 |
|
Tip Holder for M8 Contact Tip |
142.0158 |
|
Tip Holder for M6 Contact Tip |
142.0159 |
|
Fume Shroud |
983.0018 |
|
Swanneck (180 Degree) |
983.0027 |
|
Swanneck (22 Degree) |
983.0028 |
|
Swanneck (45 Degree) |
Please contact our sales team |
|
Fume Tube (180 Degree) |
983.0015 |
|
Fume Tube (22 Degree) |
983.0017 |
|
Fume Tube (45 Degree) |
Please contact our sales team |
| Nozzles and Contact Tips | xFUME® ABIROB® AF500 |
|
Conical - Flush 5/8" |
145.0580 |
|
Conical - Recess 2mm 5/8" |
145.0581 |
|
Conical - Stickout 3mm 5/8" |
145.0582 |
|
Conical - Flush 1/2" |
145.0589 |
|
Conical - Recess 2mm 1/2" |
145.0590 |
|
Conical - Stickout 3mm 1/2" |
145.0591 |
|
Bottleform - Flush 9/16" |
145.0586 |
|
Bottleform - Recess 2mm 9/16" |
145.0587 |
|
Bottleform - Stickout 3mm 9/16" |
145.0588 |
|
Bottleform - Flush 5/8" |
145.0583 |
|
Bottleform - Recess 2mm 5/8" |
145.0484 |
|
Bottleform - Stickout 3mm 5/8" |
145.0585 |
| Liners |
xFUME® ABIROB® AF500 |
|
Liner Steel .035-.045" 17ft (Steel Wire) |
SI4-3545-17PT |
|
Liner Steel .052-.062" 17ft (Steel Wire) |
SI4-5262-17PT |
|
Liner Combi .040-.045" 17ft (Aluminum Wire) |
128.9047* |
|
Liner Combi .045-.062" 17ft (Aluminum Wire) |
128.9050* |
|
Liner C-TFE .035-.045 17ft (SST Wire) |
127.9003 |
|
Liner C-TFE .052-.062 17ft (SST Wire) |
127.9006 |
| Torch Mounts | xFUME® ABIROB® AF500 |
|
Mount Arm Freedrive 22° (TCP=360) |
780.0926 |
|
Mount Arm EasyTeach 22° (TCP=360) |
780.0927 |
|
Solid Torch Mount |
Please contact our sales team |
