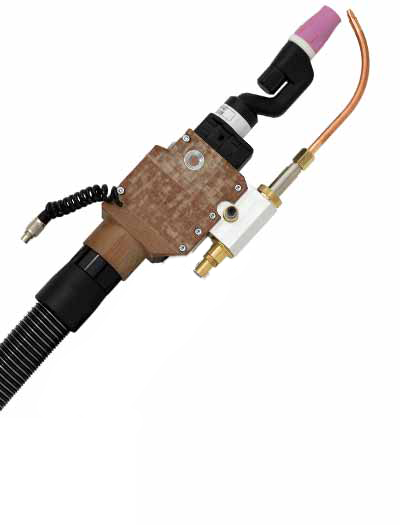

ABITIG® WH Robotic TIG Torch
TIG Robotic Welding's Torch Standard
The ABITIG WH welding torch system from ABICOR BINZEL for TIG welding offers a high degree of process reliability for joining a wide range of different materials.
Pre-set tungsten electrodes, reproducible torch replacement and servicing work is done outside the robot cell to guarantee consistently high quality and system availability.
With only two design sizes in different geometries, even for the most complex of components, the TIG welding torch system ABITIG WH covers almost all automatic TIG applications.
Also available with cold wire feeding according to the push principle.
Use with Torch Exchange Station TES for high automation levels.
ABITIG WH Features & Benefits:
- Flexible and fast adaptation to changing welding tasks
- Pre-set tungsten electrode with a reproducible torch position
- With cold wire feeding function
- Automatic neck change available for maximum system uptime
ABITIG WH Features at a Glance:

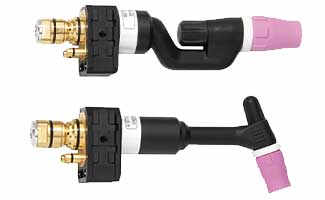

Multiple Torch Neck Features
Torch necks for ABITIG WH are rated for 100% duty cycle and come in ratings to 220 Amp DC / 160 Amp AC or 440 Amp DC / 280 Amp DC. The quick change neck features can be removed in seconds either manually and via an automatic exchange station.

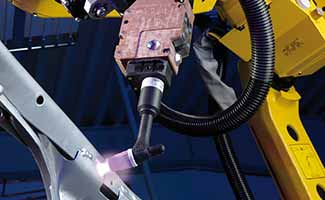

High Process Stability
ABITIG WH uses pre-set tungsten electrodes with a reproducible torch placement and service work able to be done outside the robot weld cell to optimum system availability. The compact interface and non-return valves give premium work access and leak-free neck replacements.

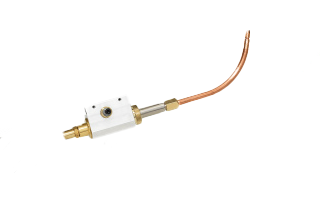

Cold Wire Feed System Available
For processes needing a Cold Wire Feed, ABITIG WH is equipped with a cold wire feed option. The Cold Wire Feed comes with a feeding tube and tip along with a swivel function to accommodate automated neck replacement.

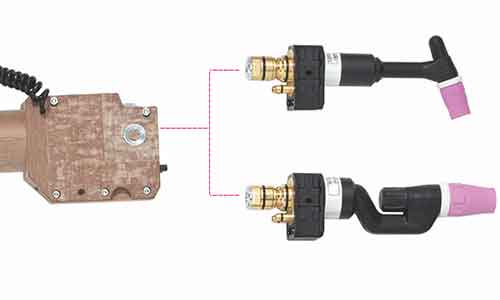

ABITIG WH System Overview & Interface:
All ABITIG WH torches use an over-arm package. Torches can be mounted using the CAT3 collision mount or using a fixed over-arm mount. Torch necks on ABITIG WH can be quickly replaced using a WH lever or with an automated Torch Exchange Station.

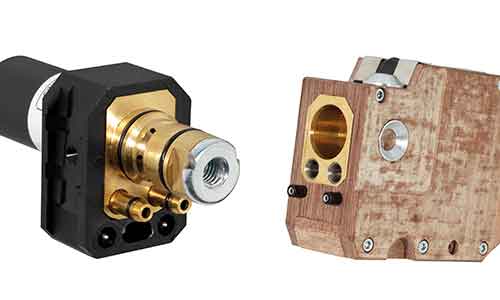

ABITIG WH uses the same interface concept as the ROBO WH MIG gun, with contacts below to assist with arc starts, O-rings to ensure a gas-tight connection, and non-return valves on the front housing block to prevent leaks.
Catalog & Manual
Technical Specifications according to EN 60 974-7:
| ABITIG WH 220 | ABITIG WH 400 | |
| Cooling: | water-cooled | water-cooled |
| Rating: |
220 A DC 160 A AC |
400 A DC 280 A AC |
| Duty cycle: | 100 % | 100 % |
| Electrode-Ø: | 1.0 - 3.2 mm | 1.6 - 4.8 mm |
Replacement Parts
|
Torch Cap | Insulators | Electrode Holders | Gas Diffusers | Gas Nozzles |
||
|
ABITIG® WH 220 |
ABITIG® WH 400 | |
|
Standard Torch Cap |
776.0053* | 967.1351* |
|
WS Clamping Element |
781.2012.1 | 781.2006.1 |
| *Factory Standard | ||
|
ABITIG® WH 220 |
ABITIG® WH 400 | |
|
Standard Insulator |
776.1043* | 775.1043* |
| *Factory Standard | ||
|
ABITIG® WH 220 |
ABITIG® WH 400 | |
|
Standard Electrode Holder 1.0 mm Wire Diameter |
776.0061 | — |
|
Standard Electrode Holder 1.6 mm Wire Diameter |
775.0062 | 775.0067 |
|
Standard Electrode Holder 2.0 mm Wire Diameter |
776.0067 | 775.0067 |
|
Standard Electrode Holder 2.4 mm Wire Diameter |
776.0063 | 775.0063 |
|
Standard Electrode Holder 3.2 mm Wire Diameter |
776.0064 | 775.0064 |
|
Standard Electrode Holder 4.0 mm Wire Diameter |
— | 775.0065 |
|
Standard Electrode Holder 4.8 mm Wire Diameter |
— | 775.0066 |
|
ABITIG® WH 220 |
ABITIG® WH 400 | |
|
Standard Diffuser 1.0 mm Wire Diameter |
776.0171 | — |
|
Standard Diffuser 1.6 mm Wire Diameter |
776.0172 | 773.0172 |
|
Standard Diffuser 2.0 mm Wire Diameter |
776.0177 | 773.0177 |
|
Standard Diffuser 2.4 mm Wire Diameter |
776.0173 | 773.0173 |
|
Standard Diffuser 3.2 mm Wire Diameter |
776.0174 | 773.0174 |
|
Standard Diffuser 4.0 mm Wire Diameter |
— | 773.0175 |
|
Standard Diffuser 4.8 mm Wire Diameter |
— | 773.0176 |
|
ABITIG® WH 220 |
ABITIG® WH 400 | |
|
Standard Short 6.5 mm |
777.0081 | — |
|
Standard Short 7.5 mm |
— | 775.0081 |
|
Standard Short 8.0 mm |
777.0082 | — |
|
Standard Short 9.5 mm |
777.0083 | — |
|
Standard Short 10.0 mm |
— | 775.0082 |
|
Standard Short 11.0 mm |
777.0084 | — |
|
Standard Short 13.0 mm |
— | 775.0083 |
|
Standard Short 15.0 mm |
— | 775.0084 |
|
Standard Long 6.5 mm |
777.2171 | — |
|
Standard Long 7.5 mm |
— | 775.2171 |
|
Standard Long 8.0 mm |
777.2172 | — |
|
Standard Long 9.5 mm |
777.2173 | — |
|
Standard Long 10.0 mm |
— | 775.2172 |
|
Standard Long 11.0 mm |
777.2174 | — |
|
Standard Long 13.0 mm |
— | 775.2173 |
|
Standard Long 15.0 mm |
— | 775.2174 |
