ABIMIG® WT Water-cooled MIG Guns
The powerful and easy to use ABIMIG® WT series welds through higher load limits than traditional MIG guns of the same size. WT's unique cooling concept protects consumables better against overheating while providing high current loads to weld thicker metal.
ABIMIG WT Features and Benefits:
- High amperage design capable of welding up to 600 amp
- Available for all major welding supplies (Lincoln®, Miller®, Tweco®, Hobart®, Euro, etc.)
- Slim handle design gives welder unmatched comfort when operating
- Ball socket handle base increase wrist flexibility to manipulate the welding gun cable
- High quality, precision machined consumables last longer and better resist spatter
- Quick change, freely positionable torch necks increases working comfort
- Extended trigger option available for optimal handling
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
How-To: Connector Kit Installation
ABIMIG WT Product Application
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.

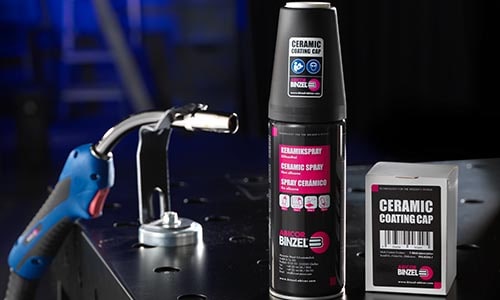

ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
Recommended Reading:
Catalog, Ordering Chart, & Manual
Replacement Parts
|
Contact Tips | Tip Holders | Nozzles | Liners | Swannecks |
||
|
ABIMIG® WT 440 |
ABIMIG® WT 540 |
|
|
M8 Standard Copper .030" |
140.0114 | — |
|
M8 Standard Copper .035" |
140.0214 | — |
|
M8 Standard Copper .040" |
140.0313 | 140.0313 |
|
M8 Standard Copper .045" |
140.0442 | 140.0442 |
|
M8 Standard Copper .052" |
140.0533 | 140.0533 |
|
M8 Standard Copper .062" |
140.0587 | 140.0587 |
|
M8 Standard Copper for Aluminum Wire .030" |
141.0033 | — |
|
M8 Standard Copper for Aluminum Wire .035" |
141.0043 | — |
|
M8 Standard Copper for Aluminum Wire .040" |
141.0008 | 141.0008 |
|
M8 Standard Copper for Aluminum Wire .045" |
141.0075 | 141.0075 |
|
M8 Standard Copper for Aluminum Wire .052" |
141.0055 | 141.0055 |
|
M8 Standard Copper for Aluminum Wire .062" |
141.0022 | 141.0022 |
|
M8 Heavy Duty Copper .030" |
140.0117 | — |
|
M8 Heavy Duty Copper .035" |
140.0217 | — |
|
M8 Heavy Duty Copper .040" |
140.0316 | 140.0316 |
|
M8 Heavy Duty Copper .045" |
140.0445 | 140.0445 |
|
M8 Heavy Duty Copper .052" |
140.0536 | 140.0536 |
|
M8 Heavy Duty Copper .062" |
140.0590 | 140.0590 |
|
M8 Ultra Long Life Silver Plated .030" |
147.0117 | — |
|
M8 Ultra Long Life Silver Plated .035" |
147.0217 | — |
|
M8 Ultra Long Life Silver Plated .040" |
147.0316 | 147.0316 |
|
M8 Ultra Long Life Silver Plated .045" |
147.0445 | 147.0445 |
|
M8 Ultra Long Life Silver Plated .052" |
147.0536 | 147.0536 |
|
M8 Ultra Long Life Silver Plated .062" |
147.0590 | 147.0590 |
|
ABIMIG® WT 440 |
ABIMIG® WT 540 |
|
|
M8 Contact Tip Holder Standard Brass, 25 mm |
— | 142.0239 |
|
M8 Contact Tip Holder Standard Brass, 26 mm |
142.0252 | — |
|
M8 Contact Tip Holder Standard Brass, 27 mm |
— | 142.0240 |
|
M8 Contact Tip Holder Standard Brass, 28 mm |
142.0253 | — |
|
M8 Contact Tip Holder Standard Brass, 31 mm |
142.0243 | — |
|
M8 Contact Tip Holder Heavy Duty Copper, 25 mm |
— | 142.0247 |
|
M8 Contact Tip Holder Heavy Duty Copper, 27 mm |
— | 142.0248 |
|
ABIMIG® WT 440 |
ABIMIG® WT 540 |
|
|
Threaded 18 mm Cylindrical Nozzle |
145.0745 | — |
|
Threaded 20 mm Cylindrical Nozzle |
— | 145.0742 |
|
Threaded 12 mm Conical Nozzle |
145.0746 | — |
|
Threaded 14 mm Conical Nozzle |
— | 145.0741 |
|
Threaded 14.5 mm Conical Nozzle |
145.D092 | — |
|
Threaded 16 mm Conical Nozzle |
— | 145.0735 |
|
ABIMIG® WT 440 |
ABIMIG® WT 540 |
|
|
Steel Wire Liner .035” - .045”, 17' Long |
SI-3545-17PT |
SI-3545-17PT |
|
Steel Wire Liner .052” - .062”, 17' Long |
SI-5262-17PT |
SI-5262-17PT |
|
Steel Wire Liner .035” - .045”, 28' Long |
SI-3545-28PT |
SI-3545-28PT |
|
Steel Wire Liner .052” - .062”, 28' Long |
SI-5262-28PT |
SI-5262-28PT |
|
Stainless Steel Wire Liner C-TFE .035” - .045”, 12' Long |
127.9001 |
127.9001 |
|
Stainless Steel Wire Liner C-TFE .035” - .045”, 14' Long |
127.9002 |
127.9002 |
|
Stainless Steel Wire Liner C-TFE .035” - .045”, 17' Long |
127.9003 |
127.9003 |
|
Stainless Steel Wire Liner C-TFE .052” - .062”, 12' Long |
127.9004 |
127.9004 |
|
Stainless Steel Wire Liner C-TFE .052” - .062”, 14' Long |
127.9005 |
127.9005 |
|
Stainless Steel Wire Liner C-TFE .052” - .062”, 17' Long |
127.9006 |
127.9006 |
|
Stainless Steel Wire Liner PA .035” - .045”, 12' Long |
128.9002 |
128.9002 |
|
Stainless Steel Wire Liner PA .035” - .045”, 14' Long |
128.9003 |
128.9003 |
|
Stainless Steel Wire Liner PA .035” - .045”, 17' Long |
128.9004 |
128.9004 |
|
Stainless Steel Wire Liner PA .052” - .062”, 12' Long |
128.9005 |
128.9005 |
|
Stainless Steel Wire Liner PA .052” - .062”, 17' Long |
128.9007 |
128.9007 |
|
Stainless Steel Wire Liner PA .062” - .078”, 12' Long |
128.9008 |
128.9008 |
|
Stainless Steel Wire Liner PA .062” - .078”, 17' Long |
128.9010 |
128.9010 |
|
Aluminum Wire Liner C-TFE RD .035"-.045", 12' Long |
126.9004 |
126.9004 |
|
Aluminum Wire Liner C-TFE RD .035"-.045", 14' Long |
126.9005 |
126.9005 |
|
Aluminum Wire Liner C-TFE RD .035"-.045", 17' Long |
126.9006 |
126.9006 |
|
Aluminum Wire Liner C-TFE RD .052"-.062", 12' Long |
126.9007 |
126.9007 |
|
Aluminum Wire Liner C-TFE RD .052"-.062", 14' Long |
126.9008 |
126.9008 |
|
Aluminum Wire Liner C-TFE RD .052"-.062", 17' Long |
126.9009 |
126.9009 |
|
ABIMIG® WT 440 |
ABIMIG® WT 540 |
|
|
Threaded 50 Degree Standard |
788.0005 | 788.0026 |
|
Threaded 50 Degree Long |
788.0068 | 788.0088 |
|
Threaded 50 Degree Extra Long |
788.0076 | 788.0096 |
|
Threaded 60 Degree Long |
788.0074 | 788.0090 |
Technical Specifications
Technical Specifications (EN 60 974-7):
| Type: | ABIMIG® WT 440 |
ABIMIG® WT 540 |
| Rating | Water-cooled | Water-cooled |
| CO2: | 500 A | 600 A |
| Mixed gases M21*: | 450 A | 550 A |
| Pulse: | 350 A | 400 A |
| Duty cycle (%): | 100 | 100 |
| Wire Ø (mm): |
0.8 - 1.6 mm (.030" - .062") |
0.8 - 1.6 mm (.030" - .062") |
* according to DIN EN ISO 14175
Rated using power source with VDE standard volt/amp characteristic (U=14+0.05xl). Recommended cooling capacity of water recirculator approx. 800 W. To protect cable assembly components from excessive heat build up we recommend a post welding cooling cycle of at least four minutes.
Definition: T = turnable/exchangeable torch neck
