Push-Pull Plus Spool Welding Gun
Push-Pull Plus uses a powerful, sturdy pull motor to exact speed regulation and overcome cable friction. Aluminum spool guns use contact pressure of the drive rolls and can be regulated with precision and eased directly on the handle.
Push-Pull Plus Features and Benefits:
- Available in air-cooled or water-cooled up to 400 amp
- Threaded welding gun necks are easily changed or rotated (available in 45 and 180 degrees)
- Precise contact pressure regulation of the wire feeding rollers directly on the torch
- Available with an optional potentiometer for speed regulation
- Optimum torch cooling for long tool life
Must be used in tandem with the Push Pull Control Box for reliable wire feeding.
Push Pull Plus Features at a Glance:

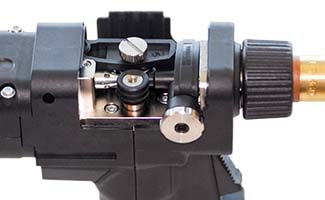

Sturdy Motor with Threaded Neck Interface
A powerful and sturdy motor on the Push-Pull Plus provides for exact speed regulation for ideal wire feeding without loss of friction. The threaded swanneck interface is easily replaceable and available in 180 or 45-degree angles.
Ergonomic Pistol Grip Handle
Ergonomic pistol grip handle allows for easy welder operation of the Push-Pull Plus in any position. Necks are able to rotated up to 360-degree in 45-degree increments. Push-Pull Plus is available in air and water-cooled models.

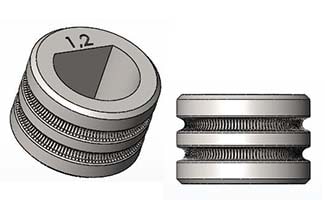

Knurled Drive Rolls for Improved Wire Feed
New and improved knurled drive rolls with the D-shaped shaft keep the wire from slipping and ensures smooth feeding of the wire to the weld piece for the most efficient aluminum welding possible.
Push Pull Plus Accessories:
Push-Pull Control Box
For even better regulation of the wire feed, the Push-Pull Control Box helps to further regulate the push and pull of the wire on difficult to calibrate welding machines.
ABICOOLER 1300 Water-cooler
The mobile welding water cooler unit ABICOOLER 1300 is the ideal complementary system to equip with your water-cooled welding torch; for reliable water-cooled welding.
Recommended Reading:
Catalog, Ordering Chart, & Manual
Replacement Parts
|
Contact Tips & Holders | Control Box | Diffusers | Nozzles | Neckliners & Liners | Swannecks |
||
| CONTACT TIPS & HOLDERS | Push-Pull Plus 36D | Push-Pull Plus 401D |
|
M6 Contact Tip Holder Spray Arc (22 mm) |
142.0007 | 142.0008 |
|
M6 Contact Tip Holders Short Arc (25 mm) |
142.0012 | — |
|
M6 Standard Copper for Aluminum Wire .030" |
141.0001 | 141.0001 |
|
M6 Standard Copper for Aluminum Wire .035" |
141.0004 | 141.0004 |
|
M6 Standard Copper for Aluminum Wire .040" |
141.0006 | 141.0006 |
|
M6 Standard Copper for Aluminum Wire .045" |
141.0082 | 141.0082 |
|
M6 Standard Copper for Aluminum Wire .062" |
141.0020 | 141.0020 |
|
M6 Standard Copper .030" |
140.0051 | 141.0051 |
|
M6 Standard Copper .035" |
140.0169 | 141.0169 |
|
M6 Standard Copper .040" |
140.0242 | 141.0242 |
|
M6 Standard Copper .045" |
140.0379 | 141.0379 |
|
M6 Standard Copper .062" |
140.0555 | 141.0555 |
|
M8 Contact Tip Holder Spray Arc (22 mm) |
142.0082 | 142.0022 |
|
M8 Contact Tip Holders Short Arc (25 mm) |
142.0026 | — |
|
M8 Standard Copper for Aluminum Wire .030" |
141.0003 | 141.0003 |
|
M8 Standard Copper for Aluminum Wire .035" |
141.0043 | 141.0043 |
|
M8 Standard Copper for Aluminum Wire .040" |
141.0008 | 141.0008 |
|
M8 Standard Copper for Aluminum Wire .045" |
141.0075 | 141.0075 |
|
M8 Standard Copper for Aluminum Wire .062" |
141.0022 | 141.0022 |
|
M8 Standard Copper .030" |
140.0114 | 141.0114 |
|
M8 Standard Copper .035" |
140.0214 | 141.0214 |
|
M8 Standard Copper .040" |
140.0313 | 141.0313 |
|
M8 Standard Copper .045" |
140.0442 | 141.0442 |
|
M8 Standard Copper .062" |
140.0587 | 141.0587 |
| CONTROL BOX | Push-Pull Plus 36D | Push-Pull Plus 401D |
|
Universal Power Supply |
080.9067 | 080.9067 |
| DIFFUSERS | Push-Pull Plus 36D | Push-Pull Plus 401D |
|
Standard Temperature Diffuser |
018.0116 | 030.0145 |
|
High Temperature Diffuser |
284.0982 | 030.0037 |
| NOZZLES | Push-Pull Plus 36D | Push-Pull Plus 401D |
|
Slip-on 14 mm Conical Nozzle |
145.0132 |
145.0132 |
|
Slip-on 16 mm Conical Nozzle |
145.0085 | 145.0085 |
|
Slip-on 16 mm Conical Heavy Duty Nozzle |
145.0086 | 145.0086 |
|
Slip-on 20 mm Cylindrical Nozzle |
145.0051 | 145.0051 |
|
Slip-on Spot Weld Nozzle |
145.0179 | — |
| NECKLINERS & LINERS | Push-Pull Plus 36D | Push-Pull Plus 401D |
|
Orange Neckliner.030"-.045" for 180 Degree |
085.9020.US | — |
|
Orange Neckliner.030"-.045" for 45 Degree |
085.9021.US | — |
|
Blue Neckliner.052"-.062" for 180 Degree |
085.9022.US | — |
|
Blue Neckliner.052"-.062" for 45 Degree |
085.9023.US | — |
|
Brass Neckliner for 180 Degree |
— | 149.0199 |
|
Brass Neckliner for 45 Degree |
— | 149.0200 |
|
Aluminum Wire Hi-Life Liner .030"-.045", 17' Long |
128.9040 | 128.9040 |
|
Aluminum Wire Hi-Life Liner .030"-.045", 28' Long |
128.9038 | 128.9038 |
|
Aluminum Wire Hi-Life Liner .052"-.062", 17' Long |
128.9041 | 128.9041 |
|
Aluminum Wire Hi-Life Liner .052"-.062", 28' Long |
128.9039 | 128.9039 |
|
Aluminum Wire Plastic Liner .035"-.045", 17' Long |
128.9004 | 128.9004 |
|
Aluminum Wire Plastic Liner .035"-.045", 28' Long |
128.9014 | 128.9014 |
|
Aluminum Wire Plastic Liner .052"-.062", 17' Long |
128.9007 | 128.9007 |
|
Aluminum Wire Plastic Liner .052"-.062", 28' Long |
128.9016 | 128.9016 |
|
Stainless Steel Wire Liner C-TFE .024"-.030", 17' Long |
127.9009 | 127.9009 |
|
Stainless Steel Wire Liner C-TFE .024"-.030", 28' Long |
127.9012 | 127.9012 |
|
Stainless Steel Wire Liner C-TFE .035"-.045", 17' Long |
127.9003 | 127.9003 |
|
Stainless Steel Wire Liner C-TFE .035"-.045", 28' Long |
127.9011 | 127.9011 |
|
Stainless Steel Wire Liner C-TFE .052"-.062", 17' Long |
127.9006 | 127.9006 |
|
Stainless Steel Wire Liner C-TFE .052"-.062", 28' Long |
127.9010 | 127.9010 |
| SWANNECKS | Push-Pull Plus 36D | Push-Pull Plus 401D |
|
Swanneck 180 Degree |
085.0007 | 095.0002 |
|
Swanneck 180 Degree Flex Neck |
085.D002 | — |
|
Swanneck 45 Degree |
085.0009 | 095.0015 |
Technical Specifications
Technical Specifications according to EN 60 974-7:
| Type: | Push-Pull Plus 36D |
Push-Pull Plus 401D |
| Rating | Air-cooled | Water-cooled |
| CO2: | 300 A | 400 A |
| Mixed gases M21*: | 270 A | 350 A |
| Duty cycle (%): | 60 | 100 |
| Wire-Ø: | .030" -.062" 0.8 - 1.6 mm |
.030" -.045" 0.8 - 1.6 mm |
*according to DIN EN ISO 14175
Rated using power source with VDE standard volt/amp characteristic (U=14+0.05xl). When pulse welding, reduce rating by 35%.
For Push-Pull Plus 401D, recommended cooling capacity of water recirculator approx. 800 W. To protect cable assembly components from excessive heat build up we recommend a post welding cooling cycle of at least four minutes.
