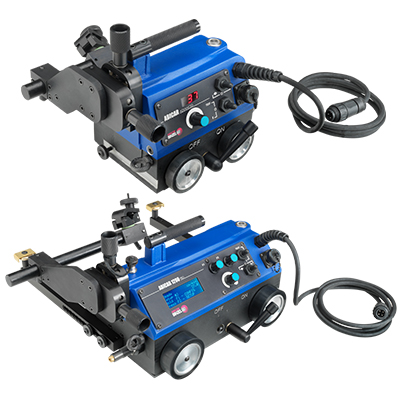

ABICAR ADVANCED & 1200 PRO - Welding Tractors
The ABICAR ADVANCED & 1200 PRO are the ideal welding tractors for horizontal and vertical fillet welds.
Durable, compact, lightweight, and easy to operate - the ABICAR ADVANCED & 1200 PRO are a great entry into semi-automated solutions.
ABICAR Features & Benefits:
- Adjustable speed up to 1,100 mm/min (ADVANCED) or 1,200 mm/min (1200 PRO)
- Magnet system with on/off lever
- Compatible with guide rails if required
- Practical additional functions such as automatic start/stop
- Optimum process control via adjustable speed during operation
- 4-axis torch adjustment for flexible positioning of the torch
- Cable connection to the wire feed unit, for on/off signal
- Programmable welding modes for continuous welding, stitch, and oscillating (1200 PRO)

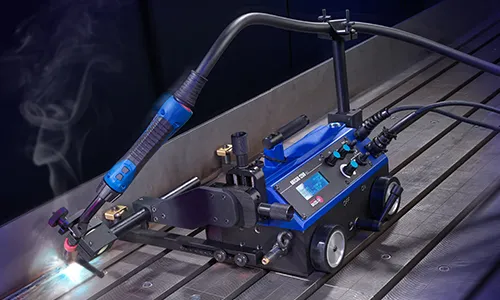

Stack Your ABICAR with an ABIMIG® Torch:
ABIMIG® AT Air-Cooled Welding Torches
The ABIMIG® AT is the welding torch for today's welder. It's comfortable, ultra lightweight, and easy to maintain. The rotatable and easy to switch torch necks give the ABIMIG® AT adaptation to any job. Available with multiple configurable options, including flexible necks and narrow gap consumables.
With the long-life consumables that come standard with every ABICOR BINZEL torch, you can produce quality welds for longer.
To view the details of the ABIMIG® AT click here.
Recommended Reading:
Catalog & Manuals
Technical Specifications
| ABICAR ADVANCED | ABICAR 1200 PRO | |
| Type: | Fillet Welding Tractor |
Programmable welding tractor for fillet & butt welds |
| Weight: | 8 kg (17.6 lbs) | 14 kg (30.9 lbs) |
| Dimensions: |
265 x 259 x 240 mm 10.4 x 10.2 x 9.5 in |
401 x 372 x 236 mm 15.8 x 14.6 x 9.3 in |
| Speed: |
Horizontal: 0 - 110 cm/min (0 - 43 in/min) Vertical: 0 - 100 cm/min (0 - 39 in/min) |
Horizontal: 0 - 120 cm/min (0 - 47 in/min) Vertical: 0 - 110 cm/min (0 - 43 in/min) |
| Circumferential seams: | Weldable (min. r = 1000 mm (39.3 in)) | Weldable (min. r = 1500 mm (59 in)) |
| Main fuse: | 115 - 230 V | 115 - 230 V |
| Min. component thickness: |
4 mm (.16 in) |
5 mm (.2 in) |
| Ground clearance: | 4 mm (.16 in) | 5 mm (.2 in) |
| Possible welding positions: |
PA/1F/1G PB/2F PC/2G PD/4F PE/4G |
PA/1F/1G PB/2F PC/2G PD/4F PE/4G PF/3F/3G with oscillator |
