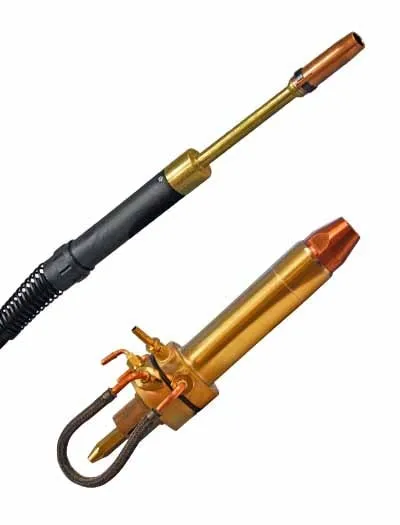

AUT Series Automatic MIG Guns
For the most difficult industrial demands
Heavy built and made for work, the AUT series of automatic MIG guns from ABICOR BINZEL bring the highest industrial durability for the most demanding welding applications.
Specially made for the hard automation space, AUT MIG guns mount easily to welding tractors, carriages, gantry systems, or welding fixtures for high load applications across long welds.
Both AUT 501 and AUT 750 are water-cooled welding guns made with brass nozzles for high durability and spatter resistance.
AUT Series Features and Benefits:
- Extremely high amperage capability for heavy-duty applications.
- Easily mountable to a variety of welding fixtures for quick integration
- Durable consumable profile make for a low cost of ownership and high productivity
- Direct mount options available for both models
- For best results use with CR 1250 water-coolers for reliable torch cooling
Choose from Two Options:

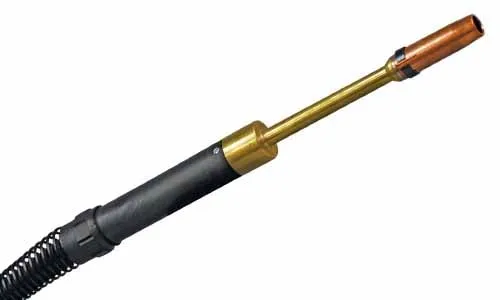

AUT 501D
The "D" series AUT 501 comes with ABICOR BINZEL's industry-leading cable assembly design with our innovative Euro-quick connect or direct connect for all the major welding machine brands. For direct mounting, the "DR" option allows the torch to be mounted without a cable assembly. Available with 22, 45, or 180 Degree swannecks.

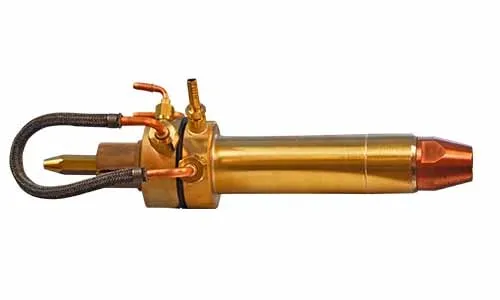

AUT 750
For extremely heavy-duty welding applications, AUT 750 is as powerful as it gets for automatic MIG gun performance. The compact, dual water-jacketed machine torch is designed specifically to withstand tremendous amounts of reflected heat build-up. Two independent water cooling channels can be fed in series or in parallel by omitting the interconnecting water hose.
AUT MIG Gun Accessories:

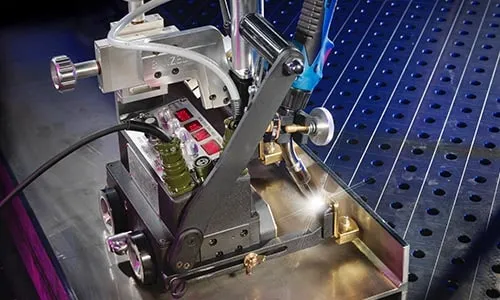

ABI-CAR Welding Tractors
Combine your AUT series MIG Guns with one of BINZEL's ABI-CAR Welding Tractor models to stack your high-performance, cost-effective productivity.
CR 1250 Water-coolers
Get elite protection of your AUT MIG guns in a compact design. CR 1250 cooler uses an integrated flow switch for permanent system monitoring.
Recommended Reading:
Catalog, Ordering Chart, & Manual
Replacement Parts
|
Contact Tips & Holders | Diffusers & Insulators | Nozzles | Liners |
|
|
|
AUT 501 |
AUT 750 |
|
|
M6 Contact Tip Holder Spray Arc |
142.0008 | — |
|
M6 Contact Tip Holder Short Arc |
142.0013 | — |
|
M6 Tapered Contact Tip Holder Spray Arc |
142.9058.US | — |
|
M6 Standard Copper .035" |
140.0169 | — |
|
M6 Standard Copper .040" |
140.0242 | — |
|
M6 Standard Copper .045" |
140.0379 | — |
|
M6 Standard Copper .052" |
140.0516 | — |
|
M6 Standard Copper .062" |
140.0555 | — |
|
M6 Standard Copper .078" |
140.0646 | — |
|
M6 Tapered Standard Copper .030" |
140.1533 | — |
|
M6 Tapered Standard Copper .035" |
140.1533 | — |
|
M6 Tapered Standard Copper .045" |
140.1534 | — |
|
M6 Heavy Duty Copper .035" |
140.0172 | — |
|
M6 Heavy Duty Copper .040" |
140.0245 | — |
|
M6 Heavy Duty Copper .045" |
140.0382 | — |
|
M6 Heavy Duty Copper .052" |
140.0519 | — |
|
M6 Heavy Duty Copper .062" |
140.0558 | — |
|
M6 Standard Copper for Aluminum Wire .035" |
141.0004 | — |
|
M6 Standard Copper for Aluminum Wire .040" |
141.0006 | — |
|
M6 Standard Copper for Aluminum Wire .045" |
141.0082 | — |
|
M6 Standard Copper for Aluminum Wire .052" |
141.0019 | — |
|
M6 Standard Copper for Aluminum Wire .062" |
141.0020 | — |
|
M8 Contact Tip Holder Spray Arc |
142.0022 | — |
|
M8 Contact Tip Holder Short Arc |
142.0027 | — |
|
M8 Standard Copper .035" |
140.0214 | — |
|
M8 Standard Copper .040" |
140.0313 | — |
|
M8 Standard Copper .045" |
140.0442 | — |
|
M8 Standard Copper .052" |
140.0533 | — |
|
M8 Standard Copper .062" |
140.0587 | — |
|
M8 Standard Copper .078" |
140.0653 | — |
|
M8 Standard Copper .094" |
140.0677 | — |
|
M8 Heavy Duty Copper .035" |
140.0217 | — |
|
M8 Heavy Duty Copper.040" |
140.0316 | — |
|
M8 Heavy Duty Copper .045" |
140.0445 | — |
|
M8 Heavy Duty Copper .052" |
140.0536 | — |
|
M8 Heavy Duty Copper .062" |
140.0590 | — |
|
M8 Heavy Duty Copper .078" |
140.0656 | — |
|
M8 Heavy Duty Copper .094" |
140.0679 | — |
|
M8 Standard Copper for Aluminum Wire .035" |
141.0043 | — |
|
M8 Standard Copper for Aluminum Wire .040" |
141.0008 | — |
|
M8 Standard Copper for Aluminum Wire .045" |
141.0075 | — |
|
M8 Standard Copper for Aluminum Wire .052" |
141.0055 | — |
|
M8 Standard Copper for Aluminum Wire .062" |
141.0022 | — |
|
M10 Heavy Duty Copper .045" |
— | 140.0481 |
|
M10 Heavy Duty Copper .052" |
— | 140.0547 |
|
M10 Heavy Duty Copper .062" |
— | 140.0616 |
|
M10 Heavy Duty Copper .078" |
— | 140.0665 |
|
M10 Heavy Duty Copper .094" |
— | 140.0698 |
|
M10 Heavy Duty Copper .110" |
— | 140.0712 |
|
M10 Heavy Duty Copper .126" |
— | 140.0734 |
|
AUT 501 |
AUT 750 |
|
|
M6/M8 Standard Diffuser for Tapered Consumables |
030.0145 | — |
|
M6/M8 Standard Diffuser |
030.0145 | — |
|
M6/M8 High-Temperature Diffuser |
030.0037 | — |
|
Insulator for Nozzle |
146.0013 | |
|
Diffuser AUT 750 (without Air Blast) |
— | 974.0032 |
|
Insulator (with Air Blast) |
— | 974.0021 |
|
Insulator Coarse Thread (optional Air Blast) |
— | 974.0044 |
|
AUT 501 |
AUT 750 |
|
|
Slip-on 10 mm Tapered Nozzle Narrow Gap Complete |
145.9005 | — |
|
Slip-on 10 mm Tapered Nozzle Narrow Gap Base |
284.0227 |
— |
|
Slip-on 10 mm Tapered Nozzle Narrow Gap Front |
145.0352 | — |
|
Slip-on 10 mm Conical Nozzle Small |
145.0137 | — |
|
Slip-on 11 mm Conical Nozzle Small |
145.0139 | — |
|
Slip-on 14 mm Conical Nozzle Small |
145.0132 | — |
|
Slip-on 16 mm Conical Nozzle |
145.0085 | — |
|
Slip-on 16 mm Heavy Duty Conical Nozzle |
145.0086 | — |
|
Slip-on 16 mm Bottleform Nozzle |
145.0148 | — |
|
Slip-on 20 mm Cylindrical Nozzle |
145.0051 | — |
|
AUT 750 Conical Nozzle |
— | 145.0019 |
|
AUT 750 Conical Nozzle Coarse Thread |
— | 145.0498 |
|
AUT 750 Cylindrical Nozzle |
— | 145.0005 |
|
AUT 501 |
AUT 750 |
|
|
Steel Wire Liner .035” - .045”, 3' Long (Direct Mount) |
122.9064 | — |
|
Steel Wire Liner .035"-.045", 17' Long |
122.9007 | — |
|
Steel Wire Liner .035"-.045", 28' Long |
122.9012 | — |
|
Steel Wire Liner .052"- .062”, 3' Long (Direct Mount) |
122.9065 | — |
|
Steel Wire Liner .052"-.062", 17' Long |
122.9058 | — |
|
Steel Wire Liner .052"-.062", 28' Long |
122.9015 | — |
|
Steel Wire Liner .078” - .125”, 3' Long (Direct Mount) |
122.9066 | — |
|
Steel Wire Liner .078"-.094", 17' Long |
122.9023 | — |
|
Stainless Steel Wire Liner C-TFE .035” - .045”, 12' Long |
127.9001 |
— |
|
Stainless Steel Wire Liner C-TFE .035” - .045”, 14' Long |
127.9002 |
— |
|
Stainless Steel Wire Liner C-TFE .035” - .045”, 17' Long |
127.9003 |
— |
|
Stainless Steel Wire Liner C-TFE .052” - .062”, 12' Long |
127.9004 |
— |
|
Stainless Steel Wire Liner C-TFE .052” - .062”, 14' Long |
127.9005 |
— |
|
Stainless Steel Wire Liner C-TFE .052” - .062”, 17' Long |
127.9006 |
— |
|
Aluminum Wire Liner P-TFE Red .035"-.045", 12' Long |
126.9004 |
— |
|
Aluminum Wire Liner P-TFE Red .035"-.045", 14' Long |
126.9005 |
— |
|
Aluminum Wire Liner P-TFE Red .035"-.045", 17' Long |
126.9006 |
— |
|
Aluminum Wire Liner P-TFE Yellow .052"-.062", 12' Long |
126.9007 |
— |
|
Aluminum Wire Liner P-TFE Yellow .052"-.062", 14' Long |
126.9008 |
— |
|
Aluminum Wire Liner P-TFE Yellow .052"-.062", 17' Long |
126.9009 |
— |
Technical Specifications
Technical Specifications (EN 60 974-7):
| Type: |
AUT 501D & AUT 501 DR |
AUT 750 |
| Rating: | Water-cooled | Water-cooled |
| CO2: | 500 A | 800 A |
| Mixed gases M21*: | 450 A | 750 A |
| Duty Cyle (%): | 100 | 100 |
| Wire Ø: |
.035" -.094" |
.045" - 1/8" |
* according to DIN EN ISO 14175
Rated using power source with VDE standard volt/amp characteristic (V=14+0.05xl). When pulse welding, reduce rating by 35%. Recommended cooling capacity of water recirculator approx. 800 W.
