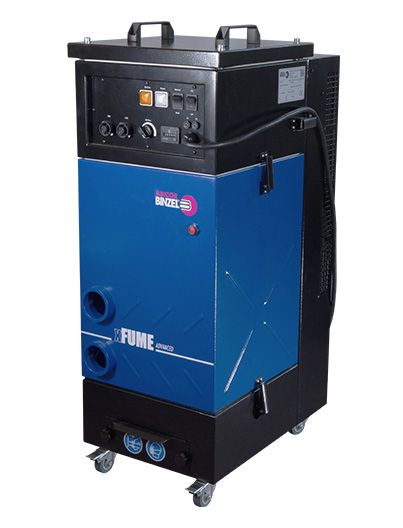

xFUME® ADVANCED Fume Extraction System
xFUME® ADVANCED uses high-vacuum fume extraction technology to capture fumes at high weld parameters. Built-in automatic Start/Stop function lowers operating costs and reduces wear on replacement parts.
xFUME® ADVANCED Features & Benefits:
- On arc fume extraction for up to two fume extraction torches
- 100% automated filter cleaning and 99.5 % of all dust > 0.1 µm
- Adjustable power lets the welder use the right amount of power for parameter and weld joint
- Automatic Start/Stop function reduces operating cost and maintenance
- Dust collection bin for safe fume dust disposal
- Pairs with xFUME® Welding Torches for a complete turnkey fume extraction solution
xFUME® ADVANCED System Features:
Multi-function Control Panel
All xFUME® ADVANCED units come with an adjustable airflow dial, automatic start switch, a usage meter to measure operation time, service light, and two shunt connections to operate two fume extraction welding guns.

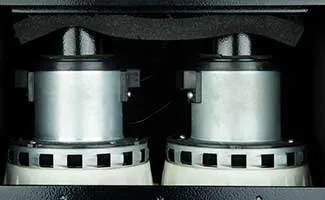

Dual Motors for High Powered Performance
Two high powered, 1.6 kW motors ensure a high static pressure and increased suction at the welding gun shroud. This allows xFUME® ADVANCED to collect fumes more effectively - even in difficult welding positions.
Twin Filters with Automatic Cleaning
xFUME® ADVANCED uses two filters with 100% automatic cleaning. A compressed air outlet pushes fume particles down to a dust collection bin for safe and simple collection. Cleaning can occur while simultaneously welding.
Two ADVANCED Options to Choose From:
xFUME® ADVANCED 115 V (Base Model)
xFUME® ADVANCED 230 V (High-power Model)
The mid-power, 115 V xFUME® ADVANCED is designed for use in lower parameter applications. Perfectly suitable for flat position welding with any type of filler metal. For higher welding parameters, use the 230-volt ADVANCED unit.
The high-power, 230 V xFUME® ADVANCED features more powerful motors and higher suction. This makes fume extraction for higher welding parameters more effective and allows for extraction in more difficult positions such as vertical and overhead.
xFUME® ADVANCED Product Overview
xFUME® ADVANCED Highlight Video
What is Fume Extraction?
Why Do I Need Fume Extraction?
Recommended Reading:
- Fume Extraction System Problems and Solutions
- How to Test Your Fume Extraction System
- 5 Fume Extraction Questions You Should Know Before Starting
- Fume Extraction Units: Tell a Good One from the Rest
- Fume Extraction Filter Review: Picking the Best Filter for the Job
- 3 Problems with Contact Tips (and How to Overcome Them)
- Understanding Contact Tips
| DESCRIPTION | PART NUMBER |
|
xFUME® ADVANCED CSA 115 V |
601.0245.1 |
|
xFUME® ADVANCED High Power CSA 230V |
601.0246.1 |
| Obsolete Models | |
| xFUME® ADVANCED Base 115 V / 60 Hz (See 601.012 Series tab for replacement parts) |
601.0128.1 |
|
xFUME® ADVANCED High Power 230 V / 60 Hz (See 601.012 Series tab for replacement parts) |
601.0121.1 |
601.012 Series - Front Panel Displayed above. See 601.024 if appearance differs.
| DESCRIPTION | PART NUMBER |
| 3/8" Industrial Air Connection (Must use 601.9105.US) | 284.1814 |
| Filter Cartridge (HISTEC PTFE) | 601.0111 |
| Vacuum Port Seal | 601.0114 |
| Star-Handled Screw for Dust Collection Bin | 601.0115 |
| Extraction Hose (Complete) - 5M | 601.0117.1 |
| Extraction Hose Cuff | 601.0116.1 |
| Air Connection Adapter | 601.9105.US |
| Quick-Lock Latch | 601.0120 |
| Auto Start/Stop Shunt | 601.0041 |
| (1) Motor - 0.8 kW (115V) [used in 601.0128.1] | 601.0110 |
| Carbon Brushes for Motor - 0.8 kW (115V) [used in 601.0110] | 601.0118 |
| (1) Motor - 1.6 kW (230V With Replaceable Brushes) [used in 601.0121.1] | 601.0122 |
| Carbon Brushes for Motor - 1.6kW (230V) [used in 601.0122] | 601.0129 |
| (1) Motor - 1.6 kW (230V With Non Replaceable Brushes) [used in 601.0121.1] | 601.0243 |
| Filter Cleaning Rotation Nozzle | 601.0234 |
601.024 Series - Front Panel Displayed above. See 601.012 if apperance differs.
| DESCRIPTION | PART NUMBER |
| Filter Cleaning Rotation Nozzle For CSA unit | 601.0241.1 |
| 3/8" Industrial Air Connection (Must use 601.9105.US) | 284.1814 |
| Filter Cartridge (HISTEC PTFE) | 601.0111 |
| Vacuum Port Seal | 601.0114 |
| Star-Handled Screw for Dust Collection Bin |
601.0115 |
| Extraction Hose (Complete) - 5M | 601.0117.1 |
| Extraction Hose Cuff |
601.0116.1 |
| Air Connection Adapter |
601.9105.US |
| Quick-Lock Latch | 601.0318 |
| Auto Start/Stop Shunt | 601.0041 |
| (1) Motor - 0.8 kW (115V) [used in 601.0245.1] | 284.3162 |
| Carbon Brushes for Motor - 0.8 kW (115V) [601.0242.1] |
601.0281 |
| Motor - 1.6 kW (230V With Non-Replaceable Brushes) | 284.2944 |
| Fuse - T25A 6.3x32mm [Used in Main Control Panel] | 601.0280 |
| Fuse - F15A 6.3x32mm [Used in Speed Control Panel] | 284.2794 |
| Fuse - T2.5A 5x20mm [Used in Low Voltage Control Panel] | 601.0282 |
| (1) Wheel - Single Caster xFUME ADV | 601.0210 |
| (1) Handle - xFUME ADV | 601.0253 |
| xFUME® ADVANCED 115V/60Hz | xFUME® ADVANCED 230V/60Hz | |
| Max. airflow: |
200 CFM (~340 m3/h) |
360 CFM (610 m3/h) |
| Connections: | 2 Ports | 2 Ports |
| Connection diameter: |
2.36 in (60 mm) |
2.36 in (60 mm) |
| Max. vacuum: | 18,000 Pa | 24,000 Pa |
| Noise level: | ≤ 75 dB (A) | ≤ 80 dB (A) |
| Voltage: |
115 V 50/60 Hz |
230 V 50/60 Hz |
| Motor power: | 2 x 0.8 kW | 2 x 1.6 kW |
| Filter efficiency: | ≥ 99.5 % @ 0.1-0.3µm | ≥ 99.5 % @ 0.1-0.3µm |
| Cleaning: | Automatic | Automatic |
| Automatic start/stop: | Yes | Yes |
| Adjustable airflow: | Yes | Yes |
| Weight: |
88 lbs (40.0 kg) |
118 lbs (53.5 kg) |
| Size: |
14.56 x 14.6 x 39.3 in 370 x 370 x 1000 mm |
20.9 x 14.6 x 39.3 in 530 x 370 x 1000 mm |
