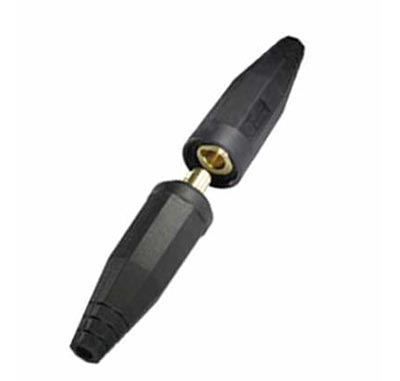

ABIPLUG Welding Lead Quick Connects
Plug & Weld Quickly and Safely
ABIPLUG welding leads connectors from are designed for safe and effective current transfer in MIG and arc welding technology. This quick lead connects guarantee maximum operating safety for the equipment and the welder.
Available as either panel socket/cable plug combination or as panel plug/cable socket combination.
ABIPLUG Quick Lead Connect Features: & Benefits:
- Safe and quick connection – highest twist resistance due to the revolutionary “square end-block-system” by ABICOR BINZEL
- High flash-over resistance – for maximum machine protection
- Easy mounting, optimal connection and excellent power transmission
- Compatible with all commercially available makes – can be built out of metal or plastic panels
- Corresponds to EN-standard EN 60 974-12 – the new EN-standard
ABIPLUG In Detail
| * = ABI-CM / ABI-IF or ABI-CF / ABI-IM ABI-CM (Cable Male) = Welding cable plug ABI-CF (Cable Female) = Welding cable socket ABI-IM (Insert Male) = Panel mounted plug ABI-IF (Insert Female) = Panel mounted socket |
 |
Technical Specifications
| Type |
Current (A) |
Cable (mm2) |
Mount-Ø (mm) |
| * 10-25 | 125 | up to 10 | 20.5 |
| * 10-25 | 150 | 10 - 16 | 20.5 |
| * 10-25 | 200 | 16 - 25 | 20.5 |
| * 35-50 | 250 | 25 - 35 | 30.5 |
| * 35-50 | 300 | 35 - 50 | 30.5 |
| * 50-70 | 400 | 50 - 70 | 30.5 |
| * 70-95 | 500 | 70 - 95 | 30.5 |
