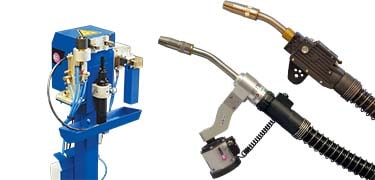

Robotic Systems Legacy Parts
Legacy Replacement Parts for ABICOR BINZEL's line of Robotic Systems Products.
For Replacement Parts of current ABICOR BINZEL Robotic Systems products please visit their respective product pages.
For Manual Welding Legacy Replacement Parts please click here.
For Welding Accessories Legacy Replacement Parts please click here.
ROBO VTS Replacement PartsDiffusers & Tip Holders | Contact Tips| Nozzles | Liners | Swannecks |
||
| DIFFUSERS & TIP HOLDERS | VTS 290 | VTS 500 |
|
M6 Tip Holder |
785.5052 | 142.0133 |
|
M8 Tip Holder |
— | 142.0117 |
|
Gas Diffuser |
962.0657 | — |
|
Ceramic Gas Diffuser |
962.1341 | — |
|
Nozzle Insulator |
— | 146.0054 |
|
High Temperature Nozzle Insulator |
— |
146.0059 |
|
Nozzle Insulator/Diffuser |
— | 943.0253 |
|
Nozzle Insulator Short |
— | 146.0064 |
| CONTACT TIPS | VTS 290 | VTS 500 |
|
M6 Standard Copper .030" |
140.0051 | 140.0051 |
|
M6 Standard Copper .035" |
140.0169 |
140.0169 |
|
M6 Standard Copper .045" |
140.0379 | 140.0379 |
|
M6 Standard Copper .045" Tight Tolerance |
140.9379 | 140.9379 |
|
M6 Standard Copper .052" |
140.0516 | 140.0516 |
|
M6 Standard Copper .062" |
140.0555 | 140.0555 |
|
M6 Oversized Copper for Aluminum .030" |
141.0001 | 141.0001 |
|
M6 Oversized Copper for Aluminum .035" |
141.0004 | 141.0004 |
|
M6 Oversized Copper for Aluminum .045" |
141.0010 | 141.0010 |
|
M6 Oversized Copper for Aluminum .062" |
141.0020 | 141.0020 |
|
M6 Heavy Duty Copper .030" |
140.0054 | 140.0054 |
|
M6 Heavy Duty Copper .035" |
140.0172 | 140.0172 |
|
M6 Heavy Duty Copper .040" |
140.0245 | 140.0245 |
|
M6 Heavy Duty Copper .045" |
140.0382 | 140.0382 |
|
M6 Heavy Duty Copper .045" Tight Tolerance |
140.1287 | 140.1287 |
|
M6 Heavy Duty Copper .052" |
140.0519 | 140.0519 |
|
M6 Ultra Long Life Silver Plated .030" |
147.0054 | 147.0054 |
|
M6 Ultra Long Life Silver Plated .035" |
147.0172 | 147.0172 |
|
M6 Ultra Long Life Silver Plated .045" |
147.0382 | 147.0382 |
|
M6 Ultra Long Life Silver Plated .045" Tight Tolerance |
147.1287 | 147.1287 |
|
M8 Standard Copper .030" |
— | 140.0114 |
|
M8 Standard Copper .035" |
— | 140.0214 |
|
M8 Standard Copper .040" |
— | 140.0313 |
|
M8 Standard Copper .045" |
— | 140.0442 |
|
M8 Standard Copper .052" |
— | 140.0533 |
|
M8 Standard Copper .062" |
— | 140.0587 |
|
M8 Oversized Copper for Aluminum .030" |
— | 141.0003 |
|
M8 Oversized Copper for Aluminum .035" |
— | 141.0043 |
|
M8 Oversized Copper for Aluminum .040" |
— | 141.0008 |
|
M8 Oversized Copper for Aluminum .045" |
— | 141.0075 |
|
M8 Oversized Copper for Aluminum .052" |
— | 141.0055 |
|
M8 Oversized Copper for Aluminum .062" |
— | 141.0022 |
|
M8 Heavy Duty Copper .030" |
— | 140.0117 |
|
M8 Heavy Duty Copper .035" |
— | 140.0217 |
|
M8 Heavy Duty Copper .040" |
— | 140.0316 |
|
M8 Heavy Duty Copper .045" |
— | 140.0445 |
|
M8 Heavy Duty Copper .045" Tight Tolerance |
— | 140.1224 |
|
M8 Heavy Duty Copper .052" |
— | 140.0536 |
|
M8 Heavy Duty Copper .052" Tight Tolerance |
— | 140.1260 |
|
M8 Heavy Duty Copper .062" |
— | 140.0590 |
|
M8 Ultra Long Life Silver Plated .030" |
— | 147.0117 |
|
M8 Ultra Long Life Silver Plated .035" |
— | 147.0217 |
|
M8 Ultra Long Life Silver Plated .040" |
— | 147.0316 |
|
M8 Ultra Long Life Silver Plated .045" |
— | 147.0445 |
|
M8 Ultra Long Life Silver Plated .045" Tight Tolerance |
— | 147.1224 |
|
M8 Ultra Long Life Silver Plated .052" |
— | 147.0536 |
|
M8 Ultra Long Life Silver Plated .052" Tight Tolerance |
— | 147.1260 |
|
M8 Ultra Long Life Silver Plated .062" |
— | 147.0590 |
| NOZZLES | VTS 290 | VTS 500 |
|
Threaded 13 mm Conical Stick-out |
145.0495 | — |
|
Threaded 13 mm Bottleform Recessed |
— | 145.0479 |
|
Threaded 15.5 mm Conical Stick-out |
145.0494 | — |
|
Threaded 15.5 mm Bottleform Recessed (3 mm) |
— | 145.0480 |
|
Threaded 15.5 mm Bottleform Recessed (1.5 mm) |
— | 145.0544 |
|
Threaded 15.5 mm Bottleform Stick-out (2 mm) |
— | 145.0466 |
|
Threaded 15.5 mm Conical Recessed |
— | 145.0553 |
|
Threaded 15.5 mm Bottleform Recessed (11.5 mm) |
— | 145.0554 |
|
Threaded 15.5 Bottleform Stick-out (7 mm) |
— | 145.0520 |
|
Threaded 15.5 Conical Recessed Inside Straight |
— | 145.0668 |
|
Threaded 20 mm Cylindrical Stick-out |
— | 145.0561 |
| LINERS | VTS 290 | VTS 500 |
|
Neck Liner Steel .035"-.045" |
149.0004 | 140.0028 |
|
Neck Liner Steel .052"-.062" |
— | 149.0023 |
|
Neck Liner Aluminum .035"-.045" |
149.0013 | 149.0031 |
|
Neck Liner Aluminum .052"-.062" |
— | 149.0048 |
|
Liner for Aluminum Wire .035"-.045", 12' Long |
128.9002 | 128.9002 |
|
Liner for Aluminum Wire .052"-.062", 12' Long |
128.9005 | 128.9005 |
|
Steel Wire Liner .035"-.045", 17' Long |
122.9057 | 122.9057 |
|
Steel Wire Liner .052"-.062", 17' Long |
122.9058 | 122.9058 |
|
Steel Wire Liner .035"-.045", 7.25' Long |
122.9057-7 | 122.9057-7 |
|
Steel Wire Liner .052"-.062", 7.25' Long |
122.9058-7 | 122.9058-7 |
|
Stainless Steel Wire Liner C-TFE .024"-.030", 17' Long |
127.9009 | 127.9009 |
|
Stainless Steel Wire Liner C-TFE .035"-.045", 17' Long |
127.9003 | 127.9003 |
|
Stainless Steel Liner Wire Liner C-TFE .052"-.062", 17' Long |
127.9006 | 127.9006 |
| SWANNECKS | VTS 290 | VTS 500 |
|
Standard 180 Degree Neck |
— | 785.5101 |
|
Standard 22 Degree Neck |
785.5050 | 785.5102 |
|
Standard 45 Degree Neck |
785.5091 | 785.5104 |
|
Standard 35 Degree Neck |
— | 785.5103 |
ROBO WH 455 PartsContact Tips & Holders | Nozzles | Liners | Swannecks | Body / Housing Assembly (Diagram) |
|
| CONTACT TIPS & HOLDERS | PART NUMBER |
|
M6 Tip Holder |
142.0123 |
|
M8 Tip Holder |
142.0122 |
|
Standard Insulator |
146.0054 |
|
Hi-Temp Insulator |
146.0059 |
|
M6 Standard Copper .030" |
140.0051 |
|
M6 Standard Copper .035" |
140.0169 |
|
M6 Standard Copper .045" |
140.0379 |
|
M6 Standard Copper .045" Tight Tolerance |
140.9379 |
|
M6 Standard Copper .052" |
140.0516 |
|
M6 Standard Copper .062" |
140.0555 |
|
M6 Oversized Copper for Aluminum .030" |
141.0001 |
|
M6 Oversized Copper for Aluminum .035" |
141.0004 |
|
M6 Oversized Copper for Aluminum .045" |
141.0010 |
|
M6 Oversized Copper for Aluminum .062" |
141.0020 |
|
M6 Heavy Duty Copper .030" |
140.0054 |
|
M6 Heavy Duty Copper .035" |
140.0172 |
|
M6 Heavy Duty Copper .040" |
140.0245 |
|
M6 Heavy Duty Copper .045" |
140.0382 |
|
M6 Heavy Duty Copper .045" Tight Tolerance |
140.1287 |
|
M6 Heavy Duty Copper .052" |
140.0519 |
|
M6 Ultra Long Life Silver Plated .030" |
147.0054 |
|
M6 Ultra Long Life Silver Plated .035" |
147.0172 |
|
M6 Ultra Long Life Silver Plated .045" |
147.0382 |
|
M6 Ultra Long Life Silver Plated .045" Tight Tolerance |
147.1287 |
|
M8 Standard Copper .030" |
140.0114 |
|
M8 Standard Copper .035" |
140.0214 |
|
M8 Standard Copper .040" |
140.0313 |
|
M8 Standard Copper .045" |
140.0442 |
|
M8 Standard Copper .052" |
140.0533 |
|
M8 Standard Copper .062" |
140.0587 |
|
M8 Oversized Copper for Aluminum .030" |
141.0003 |
|
M8 Oversized Copper for Aluminum .035" |
141.0043 |
|
M8 Oversized Copper for Aluminum .040" |
141.0008 |
|
M8 Oversized Copper for Aluminum .045" |
141.0075 |
|
M8 Oversized Copper for Aluminum .052" |
141.0055 |
|
M8 Oversized Copper for Aluminum .062" |
141.0022 |
|
M8 Heavy Duty Copper .030" |
140.0117 |
|
M8 Heavy Duty Copper .035" |
140.0217 |
|
M8 Heavy Duty Copper .040" |
140.0316 |
|
M8 Heavy Duty Copper .045" |
140.0445 |
|
M8 Heavy Duty Copper .045" Tight Tolerance |
140.1224 |
|
M8 Heavy Duty Copper .052" |
140.0536 |
|
M8 Heavy Duty Copper .052" Tight Tolerance |
140.1260 |
|
M8 Heavy Duty Copper .062" |
140.0590 |
|
M8 Ultra Long Life Silver Plated .030" |
147.0117 |
|
M8 Ultra Long Life Silver Plated .035" |
147.0217 |
|
M8 Ultra Long Life Silver Plated .040" |
147.0316 |
|
M8 Ultra Long Life Silver Plated .045" |
147.0445 |
|
M8 Ultra Long Life Silver Plated .045" Tight Tolerance |
147.1224 |
|
M8 Ultra Long Life Silver Plated .052" |
147.0536 |
|
M8 Ultra Long Life Silver Plated .052" Tight Tolerance |
147.1260 |
|
M8 Ultra Long Life Silver Plated .062" |
147.0590 |
| NOZZLES | PART NUMBER |
|
Slip-on 13 mm Conical Recessed |
145.0134 |
|
Slip-on 13 mm Conical Flush |
145.0140 |
|
Slip-on 13 mm Bottleform Recessed |
145.0167 |
|
Slip-on 15.5 mm Conical Recessed (Standard) |
145.0089 |
|
Slip-on 15.5 mm Conical Flush |
145.0106 |
|
Slip-on 15.5 mm Conical Stick-out |
145.0115 |
|
Slip-on 15.5 mm Bottleform Recessed |
145.0164 |
| LINERS | PART NUMBER |
|
Steel Wire Liner .035"-.045", 17' Long |
122.9057 |
|
Steel Wire Liner .052"-.062", 17' Long |
122.9058 |
|
Steel Wire Liner .035"-.045", 7.25' Long |
122.9057-7 |
|
Steel Wire Liner .052"-.062", 7.25' Long |
122.9058-7 |
|
Stainless Steel Wire Liner C-TFE .024"-.030", 17' Long |
127.9009 |
|
Stainless Steel Wire Liner C-TFE .035"-.045", 17' Long |
127.9003 |
|
Stainless Steel Liner Wire Liner C-TFE .052"-.062", 17' Long |
127.9006 |
| SWANNECKS | PART NUMBER |
|
Standard 180 Degree Neck |
962.0767 |
|
Standard 22 Degree Neck |
962.0768 |
|
Standard 45 Degree Neck |
962.0769 |

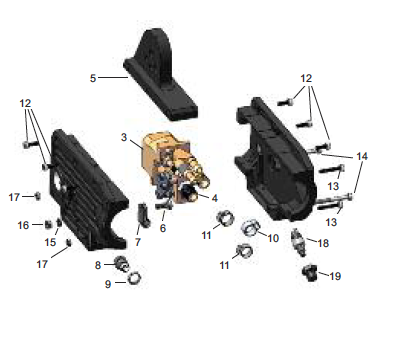

| BODY / HOUSING ASSEMBLY | PART NUMBER |
|
ROBO WH Body .030" - 062" (including block) |
960.9140 |
|
Housing Assembly (not including block) |
960.0003 |
|
ROBO WH Block |
960.0004 |
|
Bracket Mount Standard |
960.0139 |
|
Screw Pan Head Slotted (M4 x 10) |
400.0792 |
|
Clamp Holding 5/7 Conduit Wire |
185.9042 |
|
Connector PNL MNT 3-Pin Male |
175.0051 |
|
Nut E-Stop 3-Pole Connector |
175.0475 |
|
Clamp Hose 9.5 mm with Bridge (Gas Nipple) |
175.0001 |
|
Clamp Hose 8.7 mm Stepless (Water Nipple) |
171.9002 |
|
Screw Socket Head M3 x 10 |
960.0233 |
|
Screw Socket Head M3 x 18 |
009.0235 |
|
Screw Socket Head M3 x 33 |
009.0263 |
|
Washer Lock M4 |
001.9017 |
|
Nut Hex M4 |
009.0172 |
|
Nut Hex M3 |
009.0171 |
|
Switch Push Button |
185.0024 |
|
Cover Push Button Incher |
400.9060 |

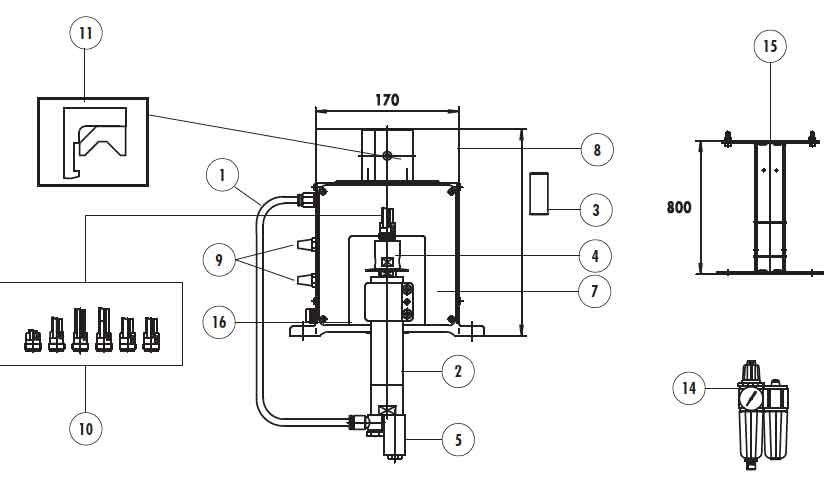

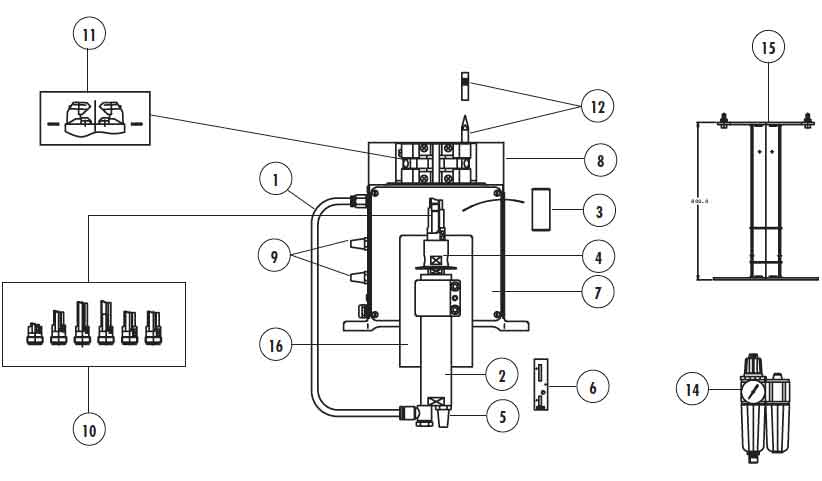

TCS-6PP Parts
Spare Parts
|
DIAGRAM NO. |
ITEM DESCRIPTION |
PART NUMBER |
| 1 |
Supply Hose Air Motor |
831.9013 |
| 2 |
Air Motor |
831.0088 |
| 3 |
Program Gage for Reamers 15.5 mm ID / 16 - 18 mm ID |
831.0036 / 831.0163 |
| 4 |
Reamer Holder |
831.0139 |
| 5 |
Silencer Air Motor Brass |
831.0419 |
| 6 |
PCB Board TCS-6 |
831.0405 |
| 7 |
Cover Front |
831.0264 |
| 8 |
Cover Back |
831.0269 |
| 9 |
Silencer |
831.0034 |
| 10 |
Reamer for Gas Nozzle ID |
See Reamer & |
| 11 |
Clamp Set for Nozzle OD |
See Reamer & Clamp Sets |
| 12 |
TCS Pointer with Cover |
830.0135 |
| 14 |
Air Maintenance Unit Complete |
830.0075 |
| 15 |
Mounting Stand |
830.0285 |
| 16 |
Cover slide and seal kit |
830.0461 |
Reamer & Clamp Sets
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0592 |
16 mm / 68 mm | 831.0487 | 831.0166 |
|
145.0593 |
16 mm / 70 mm | 831.0487 | 831.0166 |
|
145.0594 |
16 mm / 65 mm | 831.0589 | 831.0166 |
|
145.0595 |
14 mm / 68 mm | 831.0592 | 831.0166 |
|
145.0596 |
14 mm / 70 mm | 831.0592 | 831.0166 |
|
145.0597 |
14 mm / 65 mm | 831.0593 | 831.0166 |
|
145.0599 |
13 mm / 68 mm | 831.0604 | 831.0166 |
|
145.0601 |
13 mm / 65 mm | 831.0604 | 831.0166 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0580 |
16 mm / 75 mm | 831.0488 | 831.0148 |
|
145.0581 |
16 mm / 77 mm | 831.0487 | 831.0148 |
|
145.0582 |
16 mm / 72 mm | 831.0591 | 831.0148 |
|
145.0589 |
13 mm / 75 mm | 831.0180 | 831.0148 |
|
145.0590 |
13 mm / 77 mm | 831.0180 | 831.0148 |
|
145.0591 |
13 mm / 72 mm | 831.0169 | 831.0148 |
|
145.0586 |
14 mm / 75 mm | 831.0592 | 831.0148 |
|
145.0587 |
14 mm / 77 mm | 831.0592 | 831.0148 |
|
145.0588 |
14 mm / 72 mm | 831.0593 | 831.0148 |
|
145.0583 |
16 mm / 75 mm | 831.0488 | 831.0148 |
|
145.0584 |
16 mm / 77 mm | 831.0488 | 831.0148 |
|
145.0585 |
16 mm / 72 mm | 831.0591 | 831.0148 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0495 |
13 mm / 44.5 mm | 831.0180 | 831.0147 |
|
145.0564 |
16 mm / 48.5 mm | Contact Us | 831.0147 |
|
145.0494 |
16 mm / 44.5 mm | 831.0576 | 831.0147 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0479 |
13 mm / 75.5 mm | 831.0413 | 831.0147 |
|
145.0556 |
13 mm / 77.5 mm | 831.0413 | 831.0147 |
|
145.0466 |
16 mm / 72 mm | 831.0216 | 831.0147 |
|
145.0568 |
16 mm / 72.5 mm | 831.0216 | 831.0147 |
|
145.0553 |
16 mm / 75.5 mm | 831.0023 | 831.0147 |
|
145.0544 |
16 mm / 75.5 mm | 831.0023 | 831.0147 |
|
145.0480 |
16 mm / 77 mm | 831.0023 | 831.0147 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0689 |
18 mm / 92 mm | 831.0162 | 831.0147 |
|
145.0686 |
21.5 mm / 86 mm | 831.0747 | 831.0781 |
|
145.0687 |
21.5 mm / 86 mm | 831.0763 | 831.0781 |
|
145.0688 |
21.5 mm / 95 mm | 831.0764 | 831.0781 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0090 |
15.5 mm / 62 mm | 831.0022 | 831.0146 |
|
145.0135 |
13 mm / 62 mm | 831.0361 | 831.0146 |
|
145.0472 |
15.5 mm / 57 mm | 831.0237 | 831.0146 |
|
145.0473 |
13 mm / 57 mm | 831.0356 | 831.0146 |
|
145.0547 |
13 mm / 59 mm | 831.0356 | 831.0146 |
|
145.0159 |
11 mm / 62 mm | Contact Us | 831.0146 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0480 |
15.5 mm / 77 mm | 831.0023 | 831.0147 |
|
145.0544 |
15.5 mm / 75.5 mm | 831.0023 | 831.0147 |
|
145.0466 |
15.5 mm / 72 mm | 831.0216 | 831.0147 |
|
145.0479 |
13 mm / 75.5 mm | 831.0413 | 831.0147 |
|
145.0553 |
15.5 mm / 75.5 mm | 831.0023 | 831.0147 |
|
145.0554 |
15.5 mm / 85.5 mm | 831.0023 | 831.0147 |
|
145.0561 |
20 mm / 70 mm | 831.0369 | 831.0147 |
|
145.0520 |
15.5 mm / 67 mm | 831.0021 | 831.0147 |
|
145.0668 |
15.5 mm / 75.5 mm | 831.0023 | 831.0147 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0689 |
18 mm / 92 mm | 831.0162 | 831.0159 |
|
145.0687 |
21.5 mm / 86 mm | 831.0763 | 831.0159 |
|
145.0688 |
21.5 mm / 95 mm | 831.0764 | 831.0159 |
|
145.0686 |
21.5 mm / 92 mm | 831.0747 | 831.0159 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0574 |
18 mm / 84 mm | 831.0587 | 831.0781 |
|
145.0575 |
21.5 mm / 84 mm | 831.0547 | 831.0781 |
|
145.0606 |
18 mm / 82 mm | 831.0587 | 830.0781 |
| *V-Blocks for TCS Compact serial numbers below 30017428749 use Part No. 830.2161 for WH 652T Nozzles. Contact Technical Support for details. | |||
| Return to Top | |||
TCS-PP Parts
Spare Parts
|
DIAGRAM NO. |
ITEM DESCRIPTION |
PART NUMBER |
| 1 |
Supply Hose Air Motor |
176.0006 |
| 2 |
Air Motor |
831.0088 |
| 3 |
Program Gage for Reamers 15.5 mm ID / 16 - 18 mm ID |
831.0036 / 831.0163 |
| 4 |
Reamer Holder |
831.0139 |
| 5 |
Silencer Air Motor Brass |
831.0419 |
| 7 |
Cover Front |
831.0264 |
| 8 |
Cover Back |
831.0302 |
| 9 |
Silencer |
839.0034 |
| 10 |
Reamer for Gas Nozzle ID |
See Reamer & |
| 11 |
V-Block for Nozzle OD |
See Reamer & Clamp Sets |
| 14 |
Air Maintenance Unit Complete |
830.0075 |
| 15 |
Mounting Stand |
831.0285 |
| 16 |
Cover slide and seal kit |
831.0461 |
Reamer & V-Block
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0592 |
16 mm / 68 mm | 831.0487 | 831.0371 |
|
145.0593 |
16 mm / 70 mm | 831.0487 | 831.0371 |
|
145.0594 |
16 mm / 65 mm | 831.0589 | 831.0371 |
|
145.0595 |
14 mm / 68 mm | 831.0592 | 831.0371 |
|
145.0596 |
14 mm / 70 mm | 831.0592 | 831.0371 |
|
145.0597 |
14 mm / 65 mm | 831.0593 | 831.0371 |
|
145.0599 |
13 mm / 68 mm | 831.0604 | 831.0371 |
|
145.0601 |
13 mm / 65 mm | 831.0604 | 831.0371 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0580 |
16 mm / 75 mm | 831.0488 | 831.0318 |
|
145.0581 |
16 mm / 77 mm | 831.0487 | 831.0318 |
|
145.0582 |
16 mm / 72 mm | 831.0591 | 831.0318 |
|
145.0589 |
13 mm / 75 mm | 831.0180 | 831.0318 |
|
145.0590 |
13 mm / 77 mm | 831.0180 | 831.0318 |
|
145.0591 |
13 mm / 72 mm | 831.0169 | 831.0318 |
|
145.0586 |
14 mm / 75 mm | 831.0592 | 831.0318 |
|
145.0587 |
14 mm / 77 mm | 831.0592 | 831.0318 |
|
145.0588 |
14 mm / 72 mm | 831.0593 | 831.0318 |
|
145.0583 |
16 mm / 75 mm | 831.0488 | 831.0318 |
|
145.0584 |
16 mm / 77 mm | 831.0488 | 831.0318 |
|
145.0585 |
16 mm / 72 mm | 831.0591 | 831.0318 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0495 |
13 mm / 44.5 mm | 831.0180 | 831.0316 |
|
145.0564 |
16 mm / 48.5 mm | Contact Us | 831.0316 |
|
145.0494 |
16 mm / 44.5 mm | 831.0576 | 831.0316 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0479 |
13 mm / 75.5 mm | 831.0413 | 831.0316 |
|
145.0556 |
13 mm / 77.5 mm | 831.0413 | 831.0316 |
|
145.0466 |
16 mm / 72 mm | 831.0216 | 831.0316 |
|
145.0568 |
16 mm / 72.5 mm | 831.0216 | 831.0316 |
|
145.0553 |
16 mm / 75.5 mm | 831.0023 | 831.0316 |
|
145.0544 |
16 mm / 75.5 mm | 831.0023 | 831.0316 |
|
145.0480 |
16 mm / 77 mm | 831.0023 | 831.0316 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0689 |
18 mm / 92 mm | 831.0162 | 831.0319 |
|
145.0686 |
21.5 mm / 86 mm | 831.0747 | 831.0319 |
|
145.0687 |
21.5 mm / 86 mm | 831.0763 | 831.0319 |
|
145.0688 |
21.5 mm / 95 mm | 831.0764 | 831.0319 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0090 |
15.5 mm / 62 mm | 831.0022 | 831.0314 |
|
145.0135 |
13 mm / 62 mm | 831.0316 | 831.0314 |
|
145.0472 |
15.5 mm / 57 mm | 831.0237 | 831.0314 |
|
145.0473 |
13 mm / 57 mm | 831.0356 | 831.0314 |
|
145.0547 |
13 mm / 59 mm | 831.0356 | 831.0314 |
|
145.0159 |
11 mm / 62 mm | Contact Us | 831.0314 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0480 |
15.5 mm / 77 mm | 831.0023 | 831.0316 |
|
145.0544 |
15.5 mm / 75.5 mm | 831.0023 | 831.0316 |
|
145.0466 |
15.5 mm / 72 mm | 831.0216 | 831.0316 |
|
145.0479 |
13 mm / 75.5 mm | 831.0413 | 831.0316 |
|
145.0553 |
15.5 mm / 75.5 mm | 831.0023 | 831.0316 |
|
145.0554 |
15.5 mm / 85.5 mm | 831.0023 | 831.0316 |
|
145.0561 |
20 mm / 70 mm | 831.0369 | 831.0316 |
|
145.0520 |
15.5 mm / 67 mm | 831.0021 | 831.0316 |
|
145.0668 |
15.5 mm / 75.5 mm | 831.0023 | 831.0316 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0689 |
18 mm / 92 mm | 831.0162 | 831.0319 |
|
145.0687 |
21.5 mm / 86 mm | 831.0763 | 831.0319 |
|
145.0688 |
21.5 mm / 95 mm | 831.0764 | 831.0319 |
|
145.0686 |
21.5 mm / 92 mm | 831.0747 | 831.0319 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0574 |
18 mm / 84 mm | 830.2198 | 830.2363 |
|
145.0575 |
21.5 mm / 84 mm | 830.2196 | 830.2363 |
|
145.0606 |
18 mm / 82 mm | 830.2198 | 830.2363 |
| *V-Blocks for TCS Compact serial numbers below 30017428749 use Part No. 830.2161 for WH 652T Nozzles. Contact Technical Support for details. | |||
| Return to Top | |||
TCS-6 Parts
Spare Parts
|
DIAGRAM NO. |
ITEM DESCRIPTION |
PART NUMBER |
| 1 |
Supply Hose Air Motor |
831.9013 |
| 2 |
Air Motor |
831.0088 |
| 3 |
Program Gage for Reamers 15.5 mm ID / 16 - 18 mm ID |
831.0036 / 831.0163 |
| 4 |
Reamer Holder |
831.0139 |
| 5 |
Silencer Air Motor Brass |
831.0419 |
| 6 |
PCB Board TCS-6 |
831.0405 |
| 7 |
Cover Front |
831.0264 |
| 8 |
Cover Back |
831.0269 |
| 9 |
Silencer |
831.0034 |
| 10 |
Reamer for Gas Nozzle ID |
See Reamer & |
| 11 |
Clamp Set for Nozzle OD |
See Reamer & Clamp Sets |
| 12 |
TCS Pointer with Cover |
830.0135 |
| 14 |
Air Maintenance Unit Complete |
830.0075 |
| 15 |
Mounting Stand |
830.0285 |
| 16 |
Cover slide and seal kit |
830.0461 |
Reamer & Clamp Sets
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0592 |
16 mm / 68 mm | 831.0487 | 831.0166 |
|
145.0593 |
16 mm / 70 mm | 831.0487 | 831.0166 |
|
145.0594 |
16 mm / 65 mm | 831.0589 | 831.0166 |
|
145.0595 |
14 mm / 68 mm | 831.0592 | 831.0166 |
|
145.0596 |
14 mm / 70 mm | 831.0592 | 831.0166 |
|
145.0597 |
14 mm / 65 mm | 831.0593 | 831.0166 |
|
145.0599 |
13 mm / 68 mm | 831.0604 | 831.0166 |
|
145.0601 |
13 mm / 65 mm | 831.0604 | 831.0166 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0580 |
16 mm / 75 mm | 831.0488 | 831.0148 |
|
145.0581 |
16 mm / 77 mm | 831.0487 | 831.0148 |
|
145.0582 |
16 mm / 72 mm | 831.0591 | 831.0148 |
|
145.0589 |
13 mm / 75 mm | 831.0180 | 831.0148 |
|
145.0590 |
13 mm / 77 mm | 831.0180 | 831.0148 |
|
145.0591 |
13 mm / 72 mm | 831.0169 | 831.0148 |
|
145.0586 |
14 mm / 75 mm | 831.0592 | 831.0148 |
|
145.0587 |
14 mm / 77 mm | 831.0592 | 831.0148 |
|
145.0588 |
14 mm / 72 mm | 831.0593 | 831.0148 |
|
145.0583 |
16 mm / 75 mm | 831.0488 | 831.0148 |
|
145.0584 |
16 mm / 77 mm | 831.0488 | 831.0148 |
|
145.0585 |
16 mm / 72 mm | 831.0591 | 831.0148 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0495 |
13 mm / 44.5 mm | 831.0180 | 831.0147 |
|
145.0564 |
16 mm / 48.5 mm | Contact Us | 831.0147 |
|
145.0494 |
16 mm / 44.5 mm | 831.0576 | 831.0147 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0479 |
13 mm / 75.5 mm | 831.0413 | 831.0147 |
|
145.0556 |
13 mm / 77.5 mm | 831.0413 | 831.0147 |
|
145.0466 |
16 mm / 72 mm | 831.0216 | 831.0147 |
|
145.0568 |
16 mm / 72.5 mm | 831.0216 | 831.0147 |
|
145.0553 |
16 mm / 75.5 mm | 831.0023 | 831.0147 |
|
145.0544 |
16 mm / 75.5 mm | 831.0023 | 831.0147 |
|
145.0480 |
16 mm / 77 mm | 831.0023 | 831.0147 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0689 |
18 mm / 92 mm | 831.0162 | 831.0147 |
|
145.0686 |
21.5 mm / 86 mm | 831.0747 | 831.0781 |
|
145.0687 |
21.5 mm / 86 mm | 831.0763 | 831.0781 |
|
145.0688 |
21.5 mm / 95 mm | 831.0764 | 831.0781 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0090 |
15.5 mm / 62 mm | 831.0022 | 831.0146 |
|
145.0135 |
13 mm / 62 mm | 831.0361 | 831.0146 |
|
145.0472 |
15.5 mm / 57 mm | 831.0237 | 831.0146 |
|
145.0473 |
13 mm / 57 mm | 831.0356 | 831.0146 |
|
145.0547 |
13 mm / 59 mm | 831.0356 | 831.0146 |
|
145.0159 |
11 mm / 62 mm | Contact Us | 831.0146 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0480 |
15.5 mm / 77 mm | 831.0023 | 831.0147 |
|
145.0544 |
15.5 mm / 75.5 mm | 831.0023 | 831.0147 |
|
145.0466 |
15.5 mm / 72 mm | 831.0216 | 831.0147 |
|
145.0479 |
13 mm / 75.5 mm | 831.0413 | 831.0147 |
|
145.0553 |
15.5 mm / 75.5 mm | 831.0023 | 831.0147 |
|
145.0554 |
15.5 mm / 85.5 mm | 831.0023 | 831.0147 |
|
145.0561 |
20 mm / 70 mm | 831.0369 | 831.0147 |
|
145.0520 |
15.5 mm / 67 mm | 831.0021 | 831.0147 |
|
145.0668 |
15.5 mm / 75.5 mm | 831.0023 | 831.0147 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0689 |
18 mm / 92 mm | 831.0162 | 831.0159 |
|
145.0687 |
21.5 mm / 86 mm | 831.0763 | 831.0159 |
|
145.0688 |
21.5 mm / 95 mm | 831.0764 | 831.0159 |
|
145.0686 |
21.5 mm / 92 mm | 831.0747 | 831.0159 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | CLAMP SET |
|
145.0574 |
18 mm / 84 mm | 831.0587 | 831.0781 |
|
145.0575 |
21.5 mm / 84 mm | 831.0547 | 831.0781 |
|
145.0606 |
18 mm / 82 mm | 831.0587 | 830.0781 |
| *V-Blocks for TCS Compact serial numbers below 30017428749 use Part No. 830.2161 for WH 652T Nozzles. Contact Technical Support for details. | |||
| Return to Top | |||
TCS-LC Parts
Spare Parts
|
DIAGRAM NO. |
ITEM DESCRIPTION |
PART NUMBER |
| 1 |
Supply Hose Air Motor |
176.0006 |
| 2 |
Air Motor |
831.0088 |
| 3 |
Program Gage for Reamers 15.5 mm ID / 16 - 18 mm ID |
831.0036 / 831.0163 |
| 4 |
Reamer Holder |
831.0139 |
| 5 |
Silencer Air Motor Brass |
831.0419 |
| 7 |
Cover Front |
831.0264 |
| 8 |
Cover Back |
831.0302 |
| 9 |
Silencer |
839.0034 |
| 10 |
Reamer for Gas Nozzle ID |
See Reamer & |
| 11 |
V-Block for Nozzle OD |
See Reamer & Clamp Sets |
| 14 |
Air Maintenance Unit Complete |
830.0075 |
| 15 |
Mounting Stand |
831.0285 |
| 16 |
Cover slide and seal kit |
831.0461 |
Reamer & V-Block
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0592 |
16 mm / 68 mm | 831.0487 | 831.0371 |
|
145.0593 |
16 mm / 70 mm | 831.0487 | 831.0371 |
|
145.0594 |
16 mm / 65 mm | 831.0589 | 831.0371 |
|
145.0595 |
14 mm / 68 mm | 831.0592 | 831.0371 |
|
145.0596 |
14 mm / 70 mm | 831.0592 | 831.0371 |
|
145.0597 |
14 mm / 65 mm | 831.0593 | 831.0371 |
|
145.0599 |
13 mm / 68 mm | 831.0604 | 831.0371 |
|
145.0601 |
13 mm / 65 mm | 831.0604 | 831.0371 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0580 |
16 mm / 75 mm | 831.0488 | 831.0318 |
|
145.0581 |
16 mm / 77 mm | 831.0487 | 831.0318 |
|
145.0582 |
16 mm / 72 mm | 831.0591 | 831.0318 |
|
145.0589 |
13 mm / 75 mm | 831.0180 | 831.0318 |
|
145.0590 |
13 mm / 77 mm | 831.0180 | 831.0318 |
|
145.0591 |
13 mm / 72 mm | 831.0169 | 831.0318 |
|
145.0586 |
14 mm / 75 mm | 831.0592 | 831.0318 |
|
145.0587 |
14 mm / 77 mm | 831.0592 | 831.0318 |
|
145.0588 |
14 mm / 72 mm | 831.0593 | 831.0318 |
|
145.0583 |
16 mm / 75 mm | 831.0488 | 831.0318 |
|
145.0584 |
16 mm / 77 mm | 831.0488 | 831.0318 |
|
145.0585 |
16 mm / 72 mm | 831.0591 | 831.0318 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0495 |
13 mm / 44.5 mm | 831.0180 | 831.0316 |
|
145.0564 |
16 mm / 48.5 mm | Contact Us | 831.0316 |
|
145.0494 |
16 mm / 44.5 mm | 831.0576 | 831.0316 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0479 |
13 mm / 75.5 mm | 831.0413 | 831.0316 |
|
145.0556 |
13 mm / 77.5 mm | 831.0413 | 831.0316 |
|
145.0466 |
16 mm / 72 mm | 831.0216 | 831.0316 |
|
145.0568 |
16 mm / 72.5 mm | 831.0216 | 831.0316 |
|
145.0553 |
16 mm / 75.5 mm | 831.0023 | 831.0316 |
|
145.0544 |
16 mm / 75.5 mm | 831.0023 | 831.0316 |
|
145.0480 |
16 mm / 77 mm | 831.0023 | 831.0316 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0689 |
18 mm / 92 mm | 831.0162 | 831.0319 |
|
145.0686 |
21.5 mm / 86 mm | 831.0747 | 831.0319 |
|
145.0687 |
21.5 mm / 86 mm | 831.0763 | 831.0319 |
|
145.0688 |
21.5 mm / 95 mm | 831.0764 | 831.0319 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0090 |
15.5 mm / 62 mm | 831.0022 | 831.0314 |
|
145.0135 |
13 mm / 62 mm | 831.0316 | 831.0314 |
|
145.0472 |
15.5 mm / 57 mm | 831.0237 | 831.0314 |
|
145.0473 |
13 mm / 57 mm | 831.0356 | 831.0314 |
|
145.0547 |
13 mm / 59 mm | 831.0356 | 831.0314 |
|
145.0159 |
11 mm / 62 mm | Contact Us | 831.0314 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0480 |
15.5 mm / 77 mm | 831.0023 | 831.0316 |
|
145.0544 |
15.5 mm / 75.5 mm | 831.0023 | 831.0316 |
|
145.0466 |
15.5 mm / 72 mm | 831.0216 | 831.0316 |
|
145.0479 |
13 mm / 75.5 mm | 831.0413 | 831.0316 |
|
145.0553 |
15.5 mm / 75.5 mm | 831.0023 | 831.0316 |
|
145.0554 |
15.5 mm / 85.5 mm | 831.0023 | 831.0316 |
|
145.0561 |
20 mm / 70 mm | 831.0369 | 831.0316 |
|
145.0520 |
15.5 mm / 67 mm | 831.0021 | 831.0316 |
|
145.0668 |
15.5 mm / 75.5 mm | 831.0023 | 831.0316 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0689 |
18 mm / 92 mm | 831.0162 | 831.0319 |
|
145.0687 |
21.5 mm / 86 mm | 831.0763 | 831.0319 |
|
145.0688 |
21.5 mm / 95 mm | 831.0764 | 831.0319 |
|
145.0686 |
21.5 mm / 92 mm | 831.0747 | 831.0319 |
| Return to Top | |||
| NOZZLE NO. | INNER-Ø / LENGTH | REAMER BLADE | V-BLOCK |
|
145.0574 |
18 mm / 84 mm | 830.2198 | 830.2363 |
|
145.0575 |
21.5 mm / 84 mm | 830.2196 | 830.2363 |
|
145.0606 |
18 mm / 82 mm | 830.2198 | 830.2363 |
| *V-Blocks for TCS Compact serial numbers below 30017428749 use Part No. 830.2161 for WH 652T Nozzles. Contact Technical Support for details. | |||
| Return to Top | |||

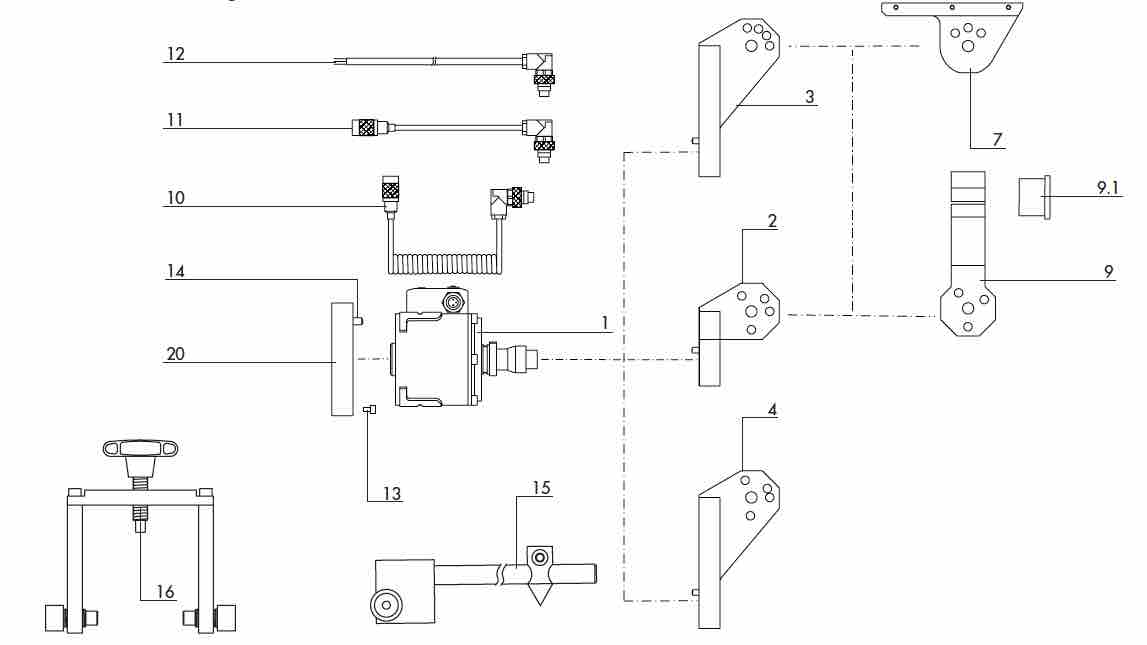

CAT2 Torch Mount Parts |
||
|
DIAGRAM NO. |
ITEM DESCRIPTION |
PART NUMBER |
| 1 |
CAT2 Torch Mount Medium Spring (with cable, no link arm) |
CAT2-MSC |
| — |
CAT2 Torch Mount Large Spring (with cable, no link arm) |
CAT2-LSC |
| — |
CAT2 Torch Mount Extra Large Spring (with cable, no link arm) |
CAT2-XSC |
| 2 |
ATS-CAT Link Arm Short |
780.0123 |
| 3 |
ATS-CAT Link Arm Long (ROBO WH) |
780.0160 |
| 4 |
ATS-CAT Link Arm Long (ABIROB; ROBO VTS) |
780.9049 |
| 7 |
Bracket for ROBO WH |
960.0139 |
| 9 |
Clamp Torch Assembly |
780.9006 |
| 9.1 |
Sleeve Insulation |
835.9004 |
| 10 |
Cable Safety Switch Coiled |
780.0116 |
| 11 |
Cable Safety Switch Straight |
780.0112 |
| 12 |
Cable Safety Switch Straight 17' Long |
780.0142 |
| 13 |
Screw M4 x 10 (Qty: 6) |
009.0268 |
| 14 |
Pin Locating M5 (included with Flange) |
000.0699 |
| 15 |
ATS-CAT Alignment Jig |
780.0204 |
| 16 |
Spring Change Tool |
780.0208 |
| 20 |
Flange |
Download Flange Chart |
